EcoFlow Alternator Charger XT60 Output Cable (1m)
Overview

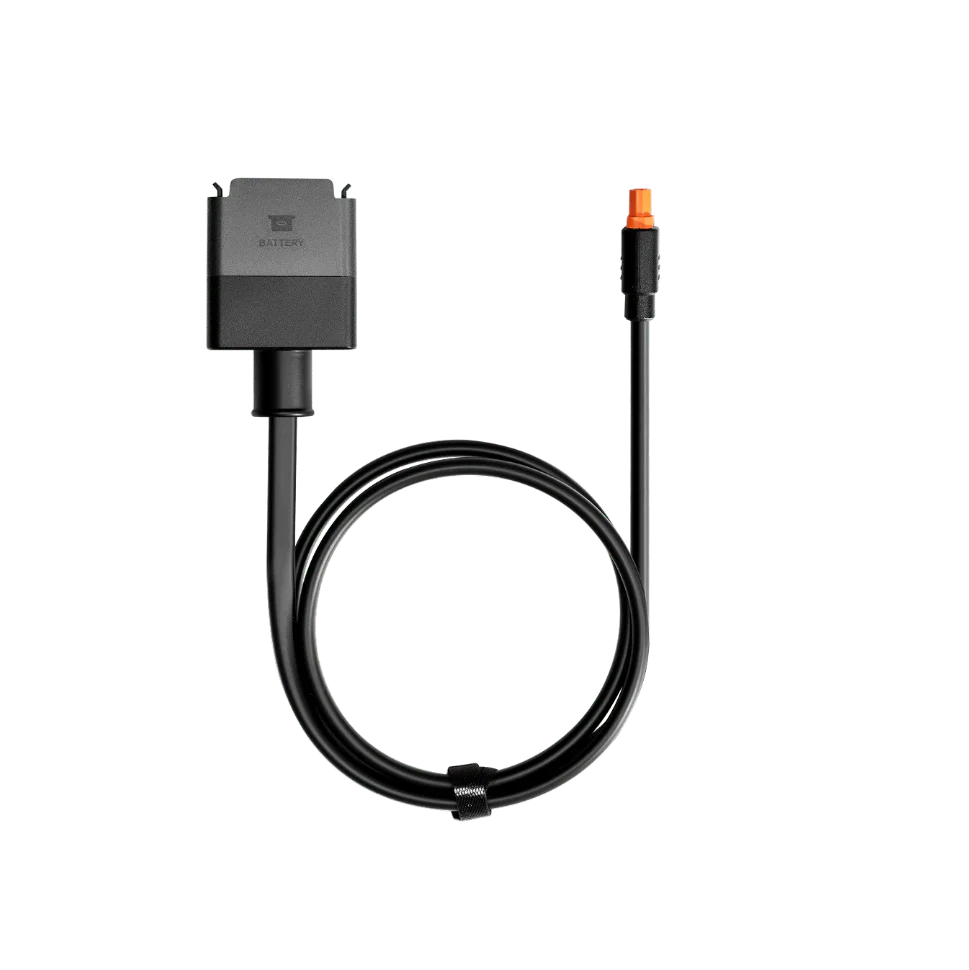

The EcoFlow Alternator Charger XT60 Output Cable (1m) plugs into the EcoFlow 500W Alternator Charger or 800W Alternator Charger at one end and into the XT60 solar input port on a portable power station at the other. This makes the alternator charger compatible with EcoFlow RIVER and DELTA series power stations that use XT60 input, as well as most third-party power stations with an XT60 solar input port.
When used with this cable, both the 500W and 800W chargers operate in Charge Mode only and are capped at 500W maximum output, subject to the rated input of the connected power station. Reverse Charge and Battery Maintenance modes are not available with this cable.
Key Features:
- Type: XT60 output cable for EcoFlow Alternator Chargers
- Length: 1m
- Connection: Charger Portable Power Station Port to XT60 solar input port on the power station
- Max Output (this cable): 500W, limited by the cable specification
- Max Output (24V power station setting): 360W
- Operating Mode: Charge Mode only (no Reverse Charge or Battery Maintenance)
- 24V Vehicle Note: If your starter battery or RV house battery is 24V, the power station's XT60 input must be rated for more than 48V, or the cable will not function
Compatibility:
- Chargers: EcoFlow 500W Alternator Charger and 800W Alternator Charger
- EcoFlow Power Stations: Any RIVER or DELTA series power station with an XT60 solar input port
- Third-Party Power Stations: Most units equipped with an XT60 solar input port (verify your unit's voltage and current rating first)
Note: This cable is included in the box with the 500W Alternator Charger and sold separately for the 800W Alternator Charger. Both chargers are capped at 500W maximum output when using this XT60 cable.
Frequently Asked Questions
Which alternator chargers does this cable work with?
This cable is compatible with both the EcoFlow 500W Alternator Charger and the EcoFlow 800W Alternator Charger. It is supplied in the box with the 500W charger and sold separately for the 800W charger. The cable connects the charger directly to the XT60 solar input port on a compatible power station.
Why is my 800W Alternator Charger only outputting 500W with this cable?
The XT60 cable is rated to a maximum of 500W output, regardless of which alternator charger it is connected to. If the power station is configured for a 24V battery, the maximum drops further to 360W. To get the full 800W output from the 800W Alternator Charger, you need to use the XT150 cable or the Custom Fit Output Cable into a compatible EcoFlow DELTA Series unit.
Will this cable work with my third-party power station?
Yes, in most cases. The cable connects to any power station with an XT60 solar input port. Before connecting, check that your power station's XT60 input accepts the alternator charger's output voltage. If your vehicle's starter battery or RV house battery is 24V, your power station's XT60 input must be rated for over 48V. Reverse Charge and Battery Maintenance modes are not supported on third-party units regardless of cable choice.
Does this cable support Reverse Charge or Battery Maintenance modes?
No. With this XT60 cable, the alternator charger operates in Charge Mode only. Reverse Charge and Battery Maintenance modes require the XT150 cable or the Custom Fit Output Cable, and a compatible EcoFlow DELTA Series unit.
