EcoFlow Rigid Solar Panel Mounting Feet
Overview
The EcoFlow Rigid Solar Panel Mounting Feet are a complete set of four roof-mount brackets designed to securely fix EcoFlow 100W and 400W Rigid Solar Panels to a flat or low-pitch roof. Made from anti-corrosive aluminium alloy with an all-black finish, they sit low and discreet on the roofline, making them well suited to caravans, motorhomes, sleepouts, baches, sheds, and tiny homes across New Zealand.
Each set includes all the M6 fasteners needed to mount one panel, so there is no need to source extra hardware separately. Built to handle long-term outdoor exposure to UV, rain, salt air, and the variable Kiwi weather conditions found in coastal and alpine areas.
Key Features:
- Compatibility: EcoFlow 100W and 400W Rigid Solar Panels
- Material: Anti-corrosive aluminium alloy
- Finish: All-black, low-profile design
- Weatherproof: Waterproof and UV-resistant for long-term outdoor use
- Set Quantity: 4 mounting feet per set (enough for 1 panel)

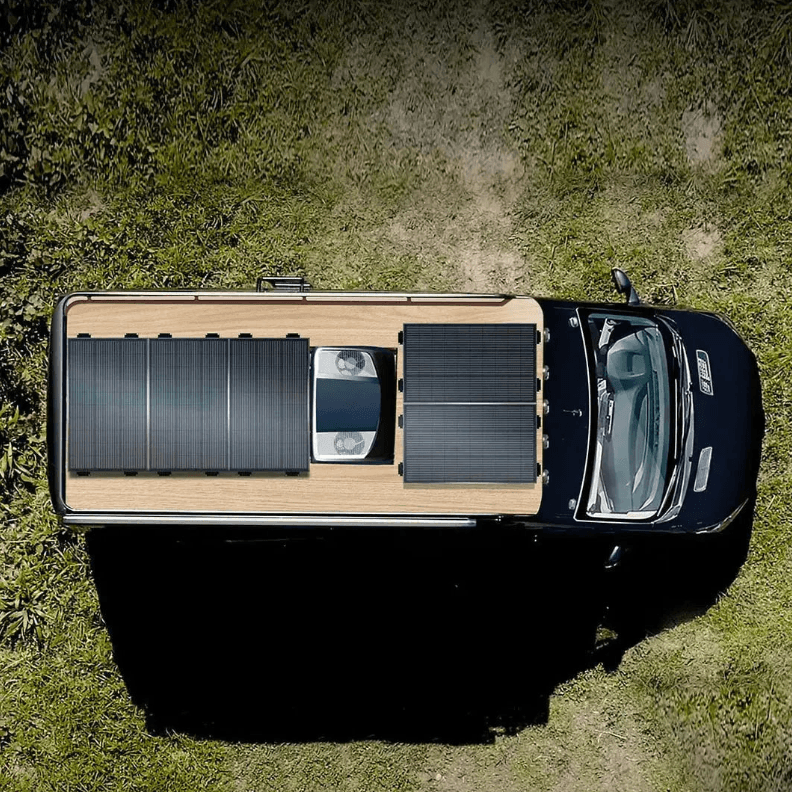

- Application: Caravans, motorhomes, sleepouts, baches, sheds, tiny homes, flat or low-pitch roofs

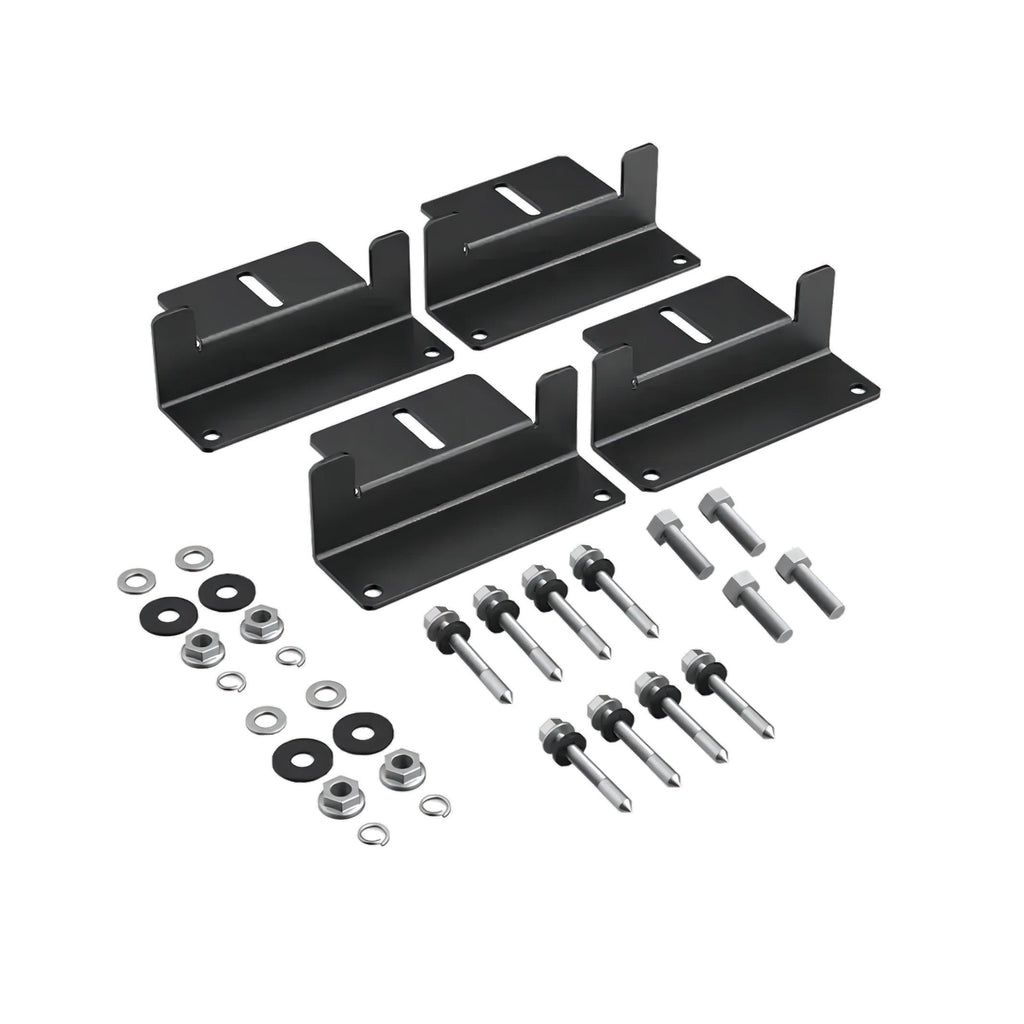

What's in the Box?
- 4 x Mounting Feet (aluminium alloy, black)
- 8 x M6 Hexagon Screws
- 4 x M6 Spring Washers
- 4 x M6 Flat Washers
- 4 x M6 Large Flat Washers
- 4 x M6 Flange Nuts
Note: Recommended tools (not provided): adjustable wrench, tape measure, safety glasses, and work gloves.
Built for Permanent Outdoor Installation

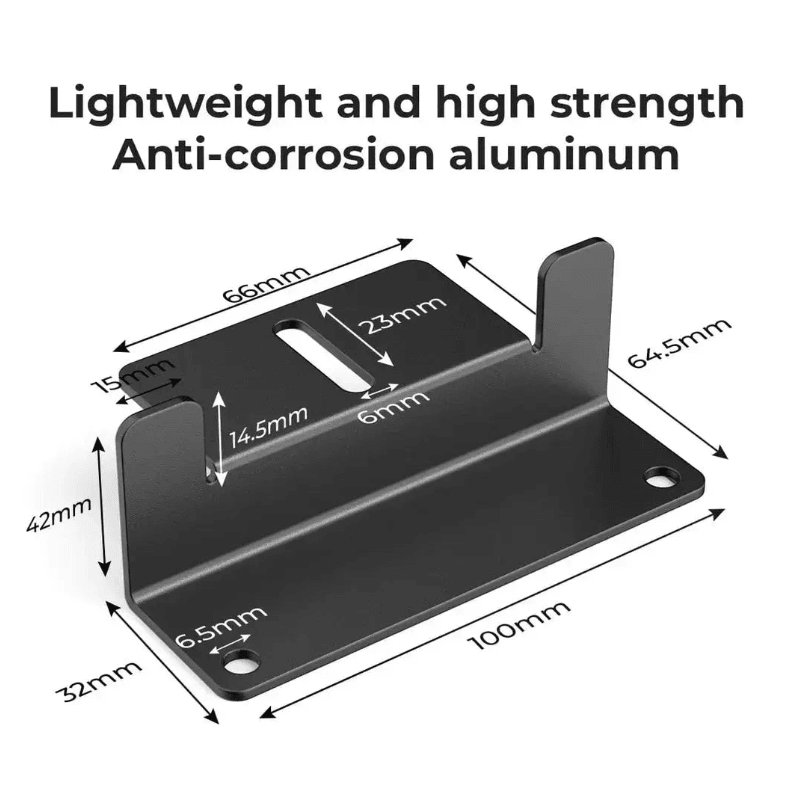

Designed for long-term mounting on a roof, the brackets are crafted from anti-corrosive aluminium alloy that handles UV exposure, rain, and salt air without rusting or weakening. The all-black finish blends in with most roofing materials, keeping the install discreet rather than drawing the eye.
A Complete Set, No Extra Hardware Needed

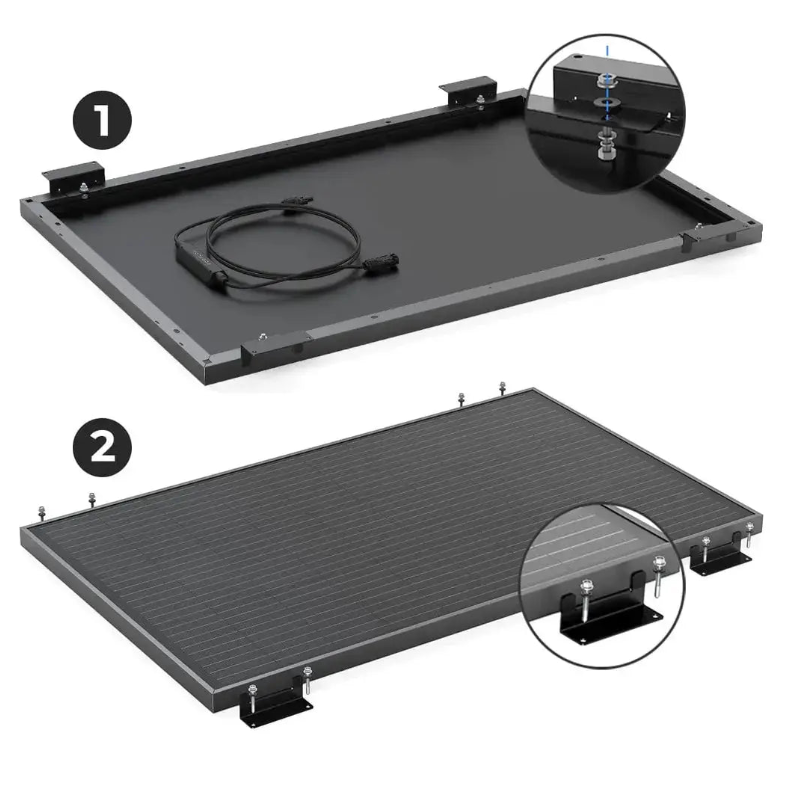

Each set includes the four mounting feet plus all the M6 fasteners required to attach one rigid solar panel. Just supply your own basic tools and roof sealant, and you are ready to install.
Compatible EcoFlow Rigid Panels
These mounting feet are designed specifically for the EcoFlow 100W Rigid Solar Panel and the EcoFlow 400W Rigid Solar Panel. They may also fit other rigid solar panels with similar mounting hole spacing, but please check your panel's mounting dimensions before purchase, as fit is not guaranteed for non-EcoFlow panels.
Important Installation Notice
The solar system should be installed, adjusted, and repaired by qualified electrical maintenance personnel familiar with the installation structure and operation of solar panel systems. HB21 is not responsible for damage caused by incorrect installation.
Frequently Asked Questions
Which EcoFlow solar panels are these mounting feet compatible with?
The EcoFlow Rigid Solar Panel Mounting Feet are designed for the EcoFlow 100W Rigid Solar Panel and the EcoFlow 400W Rigid Solar Panel. They are not designed for EcoFlow's flexible or portable solar panel range. They may also fit other rigid solar panels of similar size if the mounting hole spacing matches, but fit is not guaranteed for non-EcoFlow panels.
How many mounting feet do I need per solar panel?
One set of four mounting feet is required per rigid solar panel. If you are installing two panels on a caravan, motorhome, or shed roof, you will need two sets.
Can the mounting feet be used on a caravan or motorhome roof in New Zealand?
Yes. The mounting feet are well suited to caravan, motorhome, and 5th-wheeler roofs, as well as baches, tiny homes, and sleepouts. The aluminium alloy construction handles NZ coastal salt air and alpine weather without corroding.
What hardware is included with the mounting feet?
Each set includes 4 mounting feet, 4 x M6 hexagon screws, 4 x M6 spring washers, 4 x M6 flat washers, 4 x M6 large flat washers, and 4 x M6 flange nuts. You only need to supply basic tools and a suitable roof sealant.
Do I need a professional to install these mounting feet?
The mounting feet themselves can be installed by a competent DIYer, but the connected solar system should be wired, adjusted, and serviced by a qualified electrician or solar installer familiar with photovoltaic systems. This ensures the install is safe, weatherproof, and compliant.
